Rocker Switch - Medium

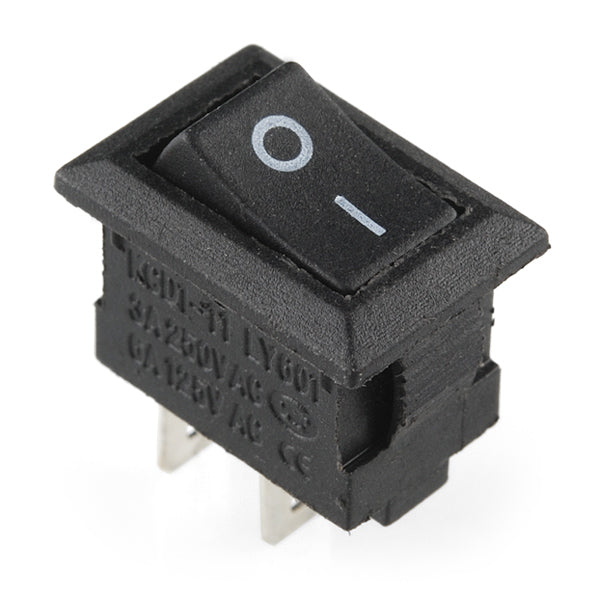

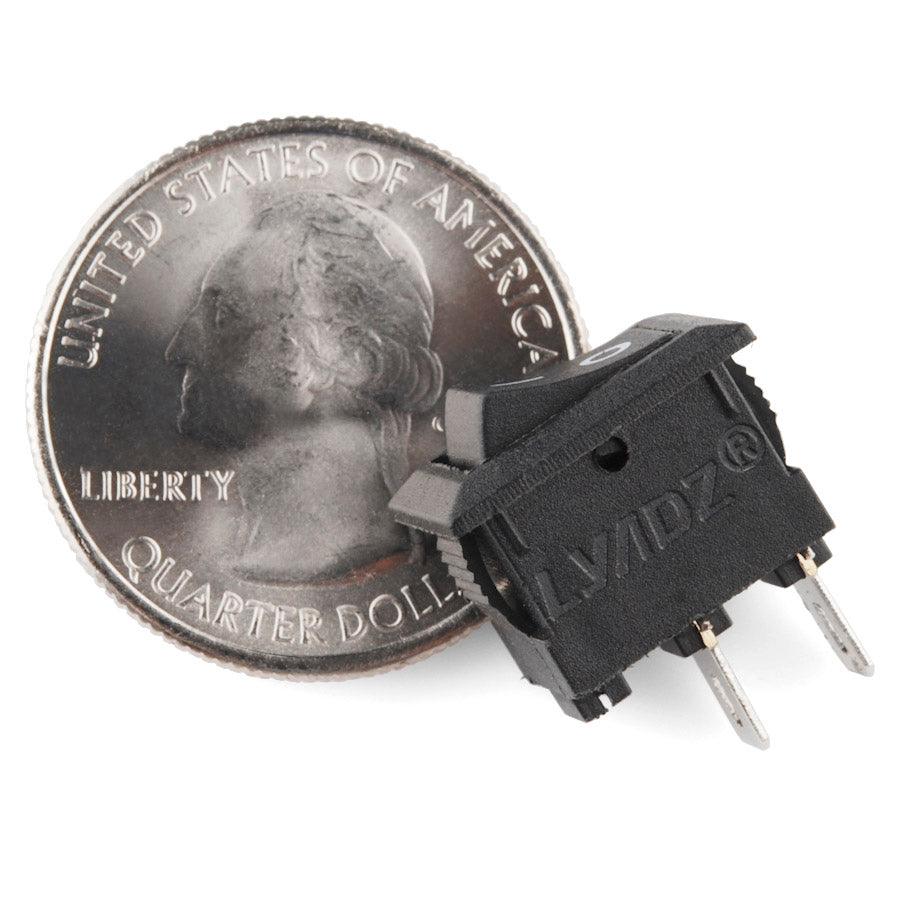

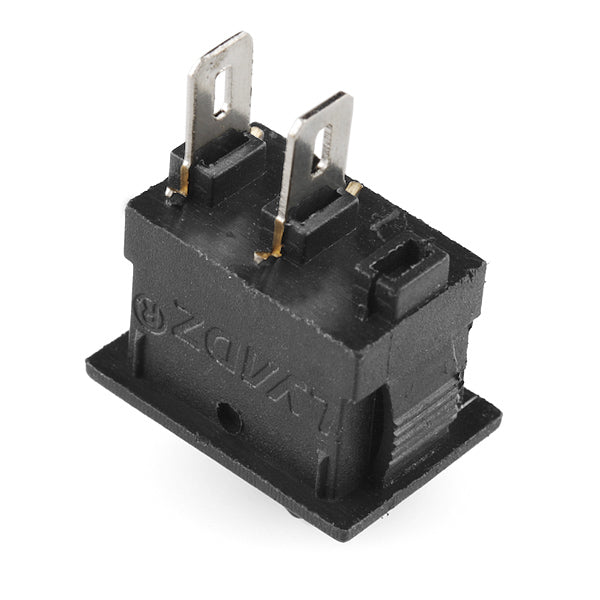

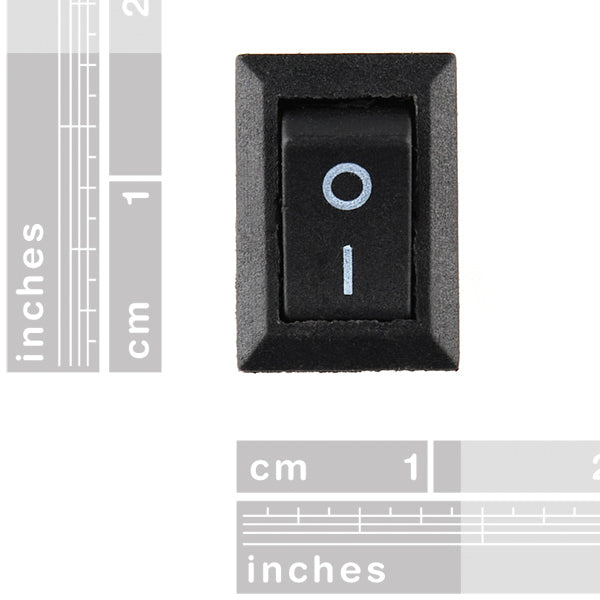

Description: The rocker switch is a classic and this one is a great size for an unobtrusive on/off switch. It can be panel mounted and has two tabs for connecting wire. You can either solder wire or use a quick-connect connector.

Features:

• Maximum Voltage: 250VAC
• Maximum Current: 3A @ 250VAC or 6A @ 125VAC
• Contact Resistance: ≥35mΩ
• Insulation Resistance: ≥100mΩ
• Operating Temperature: -25°C to 85°C
• Snap-in Panel Mount

Documents:

• Dimensional Drawing
