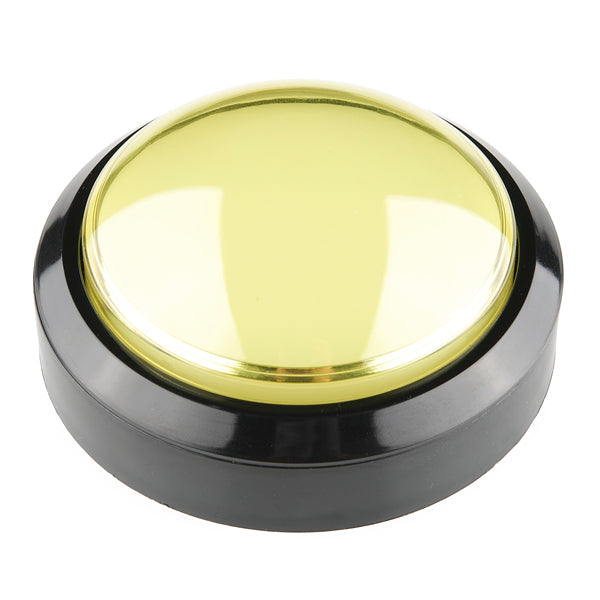

Big Dome Push Button - Yellow

Big Dome Push Button - Yellow

Regular price $11.95 USD
Regular price Sale price $11.95 USD
Sale Sold out
Shipping calculated at checkout.

Description: It's the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch. Button can also be adjusted to a low profile button by removing the middle ring.

Features:

  • LED indicator light runs at 12VDC
  • Bulb holder is easy to install or remove
  • 3 Terminals Button Actuator microswitch included
  • Microswitch reliability tested to 10,000,000 cycles
  • Microswitch can be replaced
  • Polycarbonate lens cap for optical clarity

Dimensions:

  • 100mm Diameter x 72 mm Height
  • Net weight: 100grams
  • Mounting hole diameter: 24 mm
