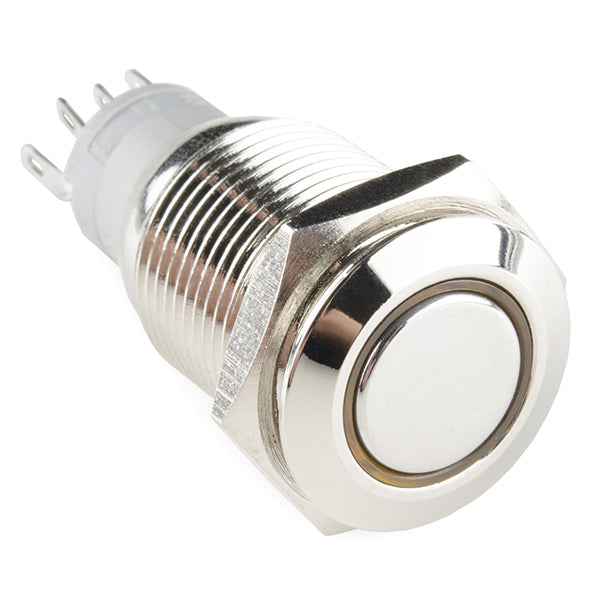

Metal Pushbutton - Latching (16mm, Yellow)

Description: This is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated yellow LED ring. It is a SPDT with 16mm threading and 1mm pitch.  This button is perfect for basic On/Off functions. Overall length (including leads) is 1.5" and has small solder lugs for connection. These latched buttons are rated up to 3A and 250VAC while the LED is rated for 5V.

Features:

• Stainless Steel Body
• IP65 Weatherproof Rating
• Tamper Resistant
• Latching Operation Type
• Yellow LED Ring

Documents:

• Datasheet
• Product Video
