Motor Driver and Power Distribution Board for Romi Chassis

Overview

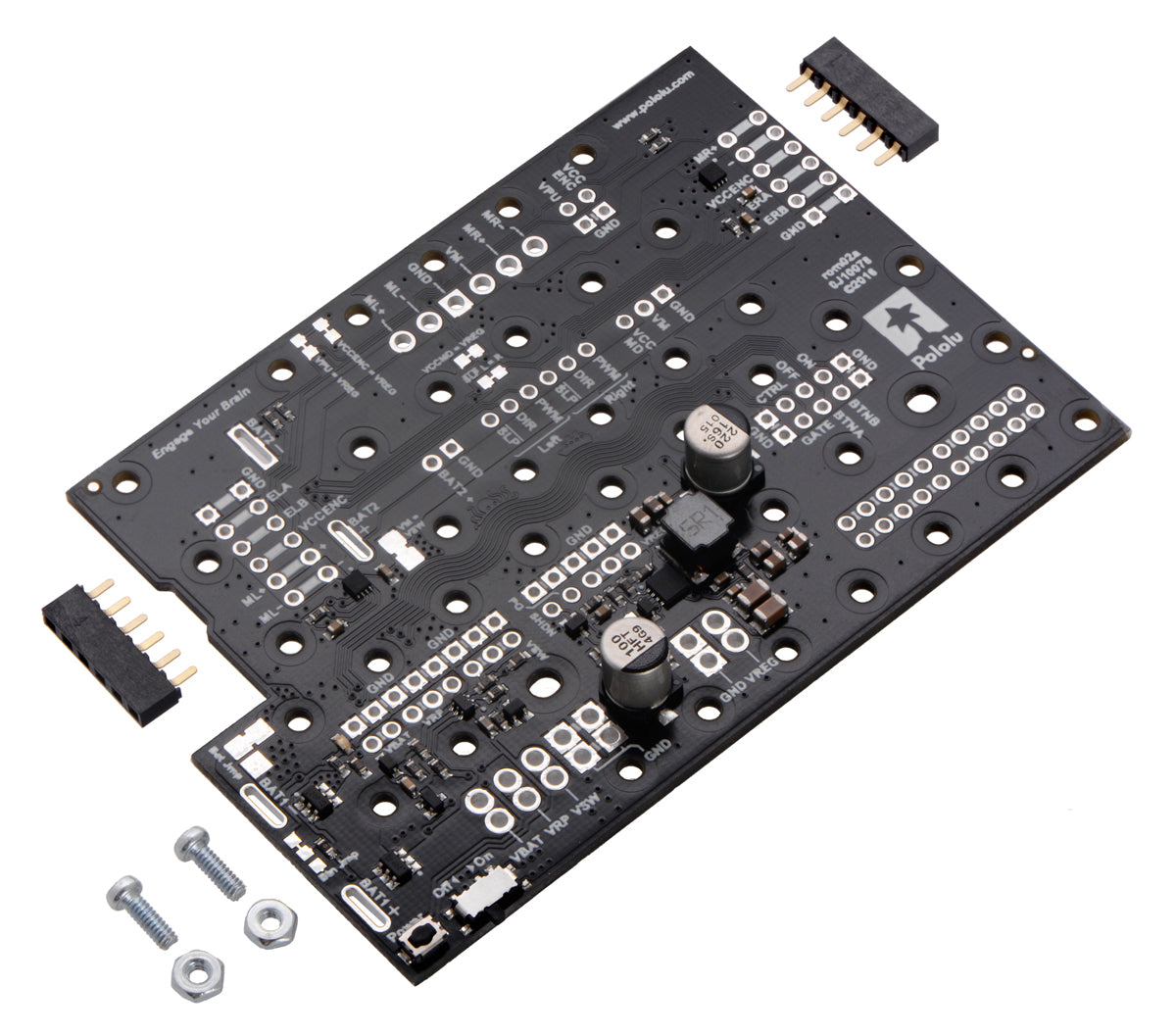

This motor driver and power distribution board is designed specifically for the Romi chassis as a convenient way to drive the chassis�s motors and power the rest of the electronics that make up your robot. It features two DRV8838 motor drivers, one for each of the chassis�s motors, and a powerful switching step-down regulator that can supply a continuous 2.5 A at 5 V or 3.3 V. The board has slots for soldering in the Romi chassis battery contact tabs, and it incorporates the power switching and distribution functionality from the Power Distribution Board for Romi Chassis, so it offers all of the same features: reverse voltage protection, several power switching options based on the patented latching circuit from the Pololu pushbutton power switch, and easy access to the various power buses.

The board has a small pushbutton already installed for controlling power (one push turns power on and another push turns it off) and offers convenient points for connecting external pushbutton or tactile switches in parallel. It also offers several alternate pushbutton connection options that result in push-on-only or push-off-only operation, and additional inputs enable further power control options like allowing your robot to turn off its own power. Alternatively, the board can be reconfigured to disable the pushbutton circuit and give control to the small installed slide switch.

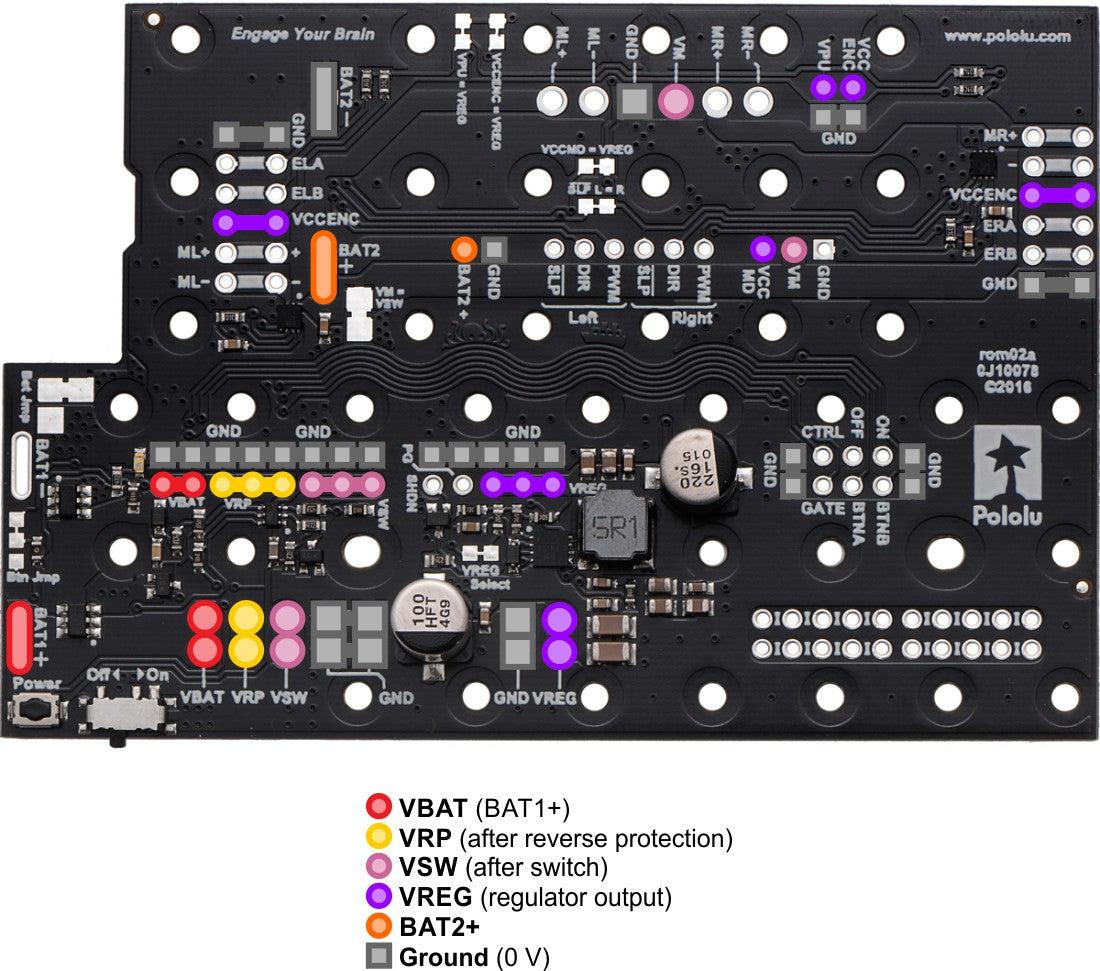

The board�s control pins and power buses are accessible through a set of 0.1?-spaced pins that are compatible with standard 0.1? male and 0.1? female headers, and the power buses are also accessible through a larger set of holes that are compatible with 3.5mm-pitch terminal blocks (you can combine a 2-pin block and
